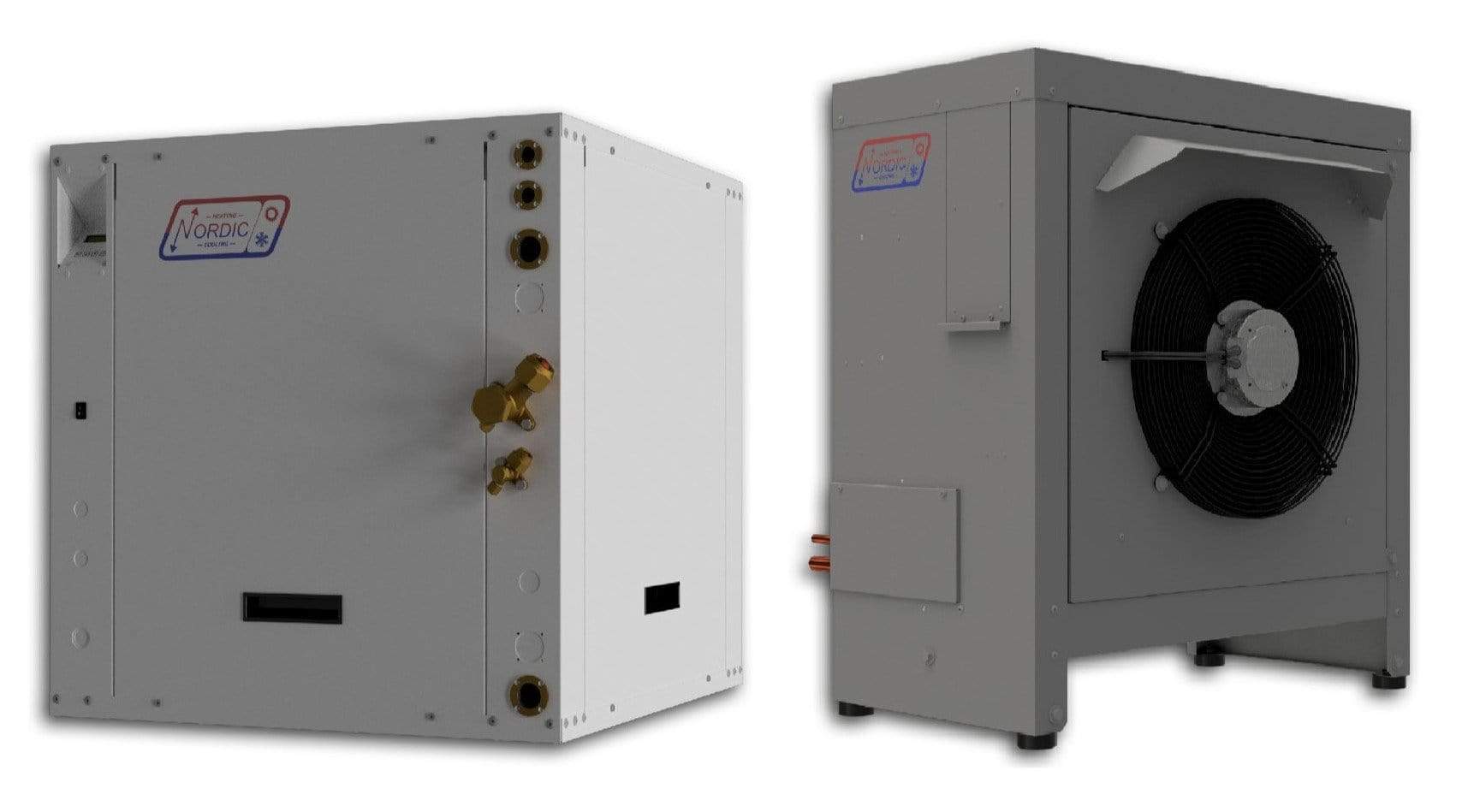

Air to Water Heat Pump - Nordic ATW25 - Split Type - 2 Tons Nominal Cooling Capacity

$ 14,142.00 CAD
Size

Notify me when back in stock

Payments:  Credit Cards paypal bank transfer

Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.

  • refund Full refund if you do not receive your ordered items.
  • refund Partial Refund for partially not received or damaged items
  • Introduction
  • Design Features
  • Technical Documents
  • Air to Water Heat Pump - Nordic ATW55 - Split Type - 4 Tons Nominal Cooling Capacity

    Benefits:

    The air source ATW model is an air cooled split type heat pump. It's 100% Canadian Made for Canadian Weather. It can provide hot water at Temperatures ranging from -22.6⁰C (-5⁰F) to +18.3⁰C (65⁰F) outdoor temperatures with leaving hot water temperatures between 41.6⁰C (106.9⁰F) to 43.6⁰C (110.5⁰F). The split system requires only condenser to be located outdoor, thus eliminating the need to use Propylene Glycol as heat transfer fluid. For applications like Hydronic Space Heating/Cooling, Domestic Hot Water heating and summer pool heating, simply water can be used as a heat transfer fluid.


    Typical Application:

    Heat Pump can be combined to solar water heating panels, pumps and thermal storage tank with immersed coils as shown in the below schematic. Heat Pump could be used for space heating, space cooling, domestic hot water heating and Pool/SPA heating.

    • Hot Water for Radiant In-Floor Heating The ATW Series produces hot water at ideal temperatures for radiant in-floor heating and hydronic fan coil heating.
    • Chilled Water for Cooling This reversible heat pump chills water for air conditioning via hydronic fan coils or radiant cooling.
    • Desuperheater for Domestic Hot Water Preheat your domestic hot water via the built-in desuperheater, saving up to 50% on your domestic hot water heating costs.
    TYPICAL USAGE

    Typical Installation

    TYPICAL DIAGRAM



  • Design Features

    • TUV listed for electrical certification
    • 18/20ga satin galvanized cabinet with reinforcing channel stiffeners
    • Powder coat finish
    • Acoustically insulated cabinet (1” and 1/2” thick)
    • Completely insulated heat exchanger and piping
    • Four removable access panels
    • Refrigeration service ports located inside unit (1/4” Schrader)
    • Swing out electrical box for unobstructed access to compressor
    • Component layout allows easy access for service
    • 1” Brass FPT fittings for hydronic connections
    • Copeland Ultratech scroll compressor with start capacitor kit on single phase models
    • Dual grommet mounting system for compressor reduces noise and vibration
    • Suction line accumulator for compressor protection
    • Liquid line filter-dryer & sight glass
    • Two Electronic Expansion Valves (EEVs)
    • Coaxial hydronic heat exchanger, available in CuNi
    • High and low pressure sensors
    • Manual reset high pressure control
    • Suction line temperature sensor
    • Temperature sensors on both water lines
    • Control transformer with resettable breaker or fuse protection
    • Advanced control board with BACNet interface for remote operation and data access including all sensor data and alarm conditions, PWM outputs (or 0-10VDC), configurable analog inputs (0-5VDC or 4-20mA) with onboard 5VDC, 12VDC and 24VDC power supplies.
    • USB port for complete data access including real-time charting, data logging, and diagnostic functionality with manual override operation.
    • 2 x 16 LCD display for control and data access; unit may be configured for standalone operation with outdoor reset functionality (requires outdoor temperature sensor accessory).
    • Random start on power up (0-2 minutes)
    • 24VAC output and dry contacts for auxiliary heat, controlled by ATW
    • Double wall Domestic Hot Water desuperheater suitable for potable water connections.
    • Brass head ECM circulator for domestic hot water circuit uses less than half the power of traditional circulating pumps and allows motor replacement without tools.
    • 1/2” brass FPT fittings for Domestic Hot Water connections.
