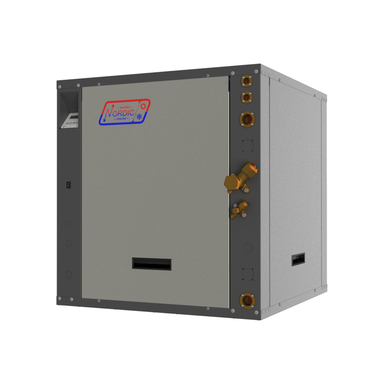

Nordic RS Series Water to Air Heat Pumps - Split

Introduction

The RS-series is a split water source heat pump (with remote indoor air handler) that can heat or chill air in a forced air duct system. Being a split system it provides the ability to locate the compressor unit and air handler in different locations. It also uses its built-in desuperheater to preheat domestic hot water. This unit is available in sizes from 3 to 6 nominal tons, and works on an open water well or closed ground loop.

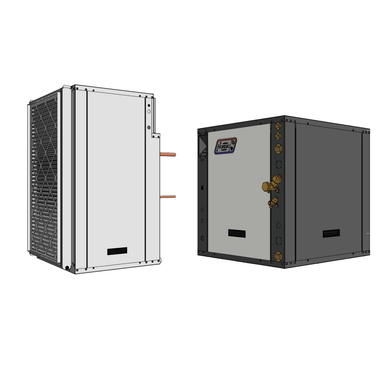

Air Handler Options

There are two Nordic air handler configurations available, horizontal (AHH) or vertical (AHV).

QUICK FACTS
Distribution Type Forced air
Capabilities Heating, cooling, domestic hot water
Loop Type Open or closed loop
Size 3 to 6 nominal tons
COP 3.5 - 4.8
Certifications CSA

Features & Available Options

  • Domestic hot water desuperheater
  • Coaxial heat exchangers – cupro nickel (CuNi) heat exchangers available upon request
  • Slow closing water valve kit available for open loop installations
  • Smallest 5-6 ton footprint in the industry at 24” x 28”
  • Completely insulated water lines, accumulator, and heat exchanger.
  • Oversized water coil evaporator (e.g. a three ton capacity heat pump has a five ton capacity coil) to achieve high COP’s even when operated on ground loops as cold as 25°F.
