Brazed Plate Heat Exchangers

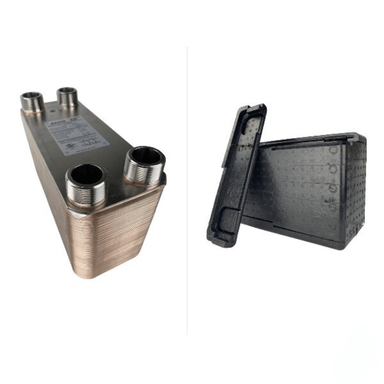

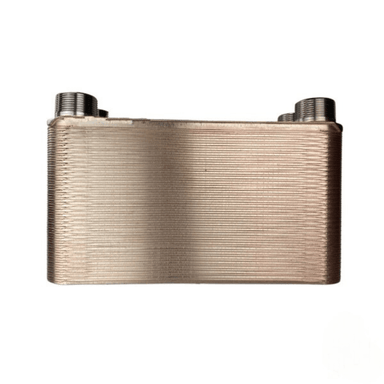

Brazed Plate Heat Exchanger

General Information

A Brazed Plate Heat exchanger is a device for transferring heat between two fluids (such as Glycol/Water mix and Water) without contact between the two fluids. Fluids circulate in reverse flow scheme between heat transfer plates as shown in the below picture.

Fluid Process in BPHE

Typical Application

Brazed Plate Heat Exchangers (BPHE) are widely used in residential HVAC application as well as solar application.
