All in One Buffer Tank and Indirect Water Heater 100 L - Large Diameter Lower Coil Only - (Φ38mm / Φ1½") - Model No. CBIT100L1C40

Sold out
$ 1,412.13 CAD

Notify me when back in stock

Payments:  Credit Cards paypal bank transfer

Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.

  • refund Full refund if you do not receive your ordered items.
  • refund Partial Refund for partially not received or damaged items
  • Description
  • Specifications
  • Technical Documents

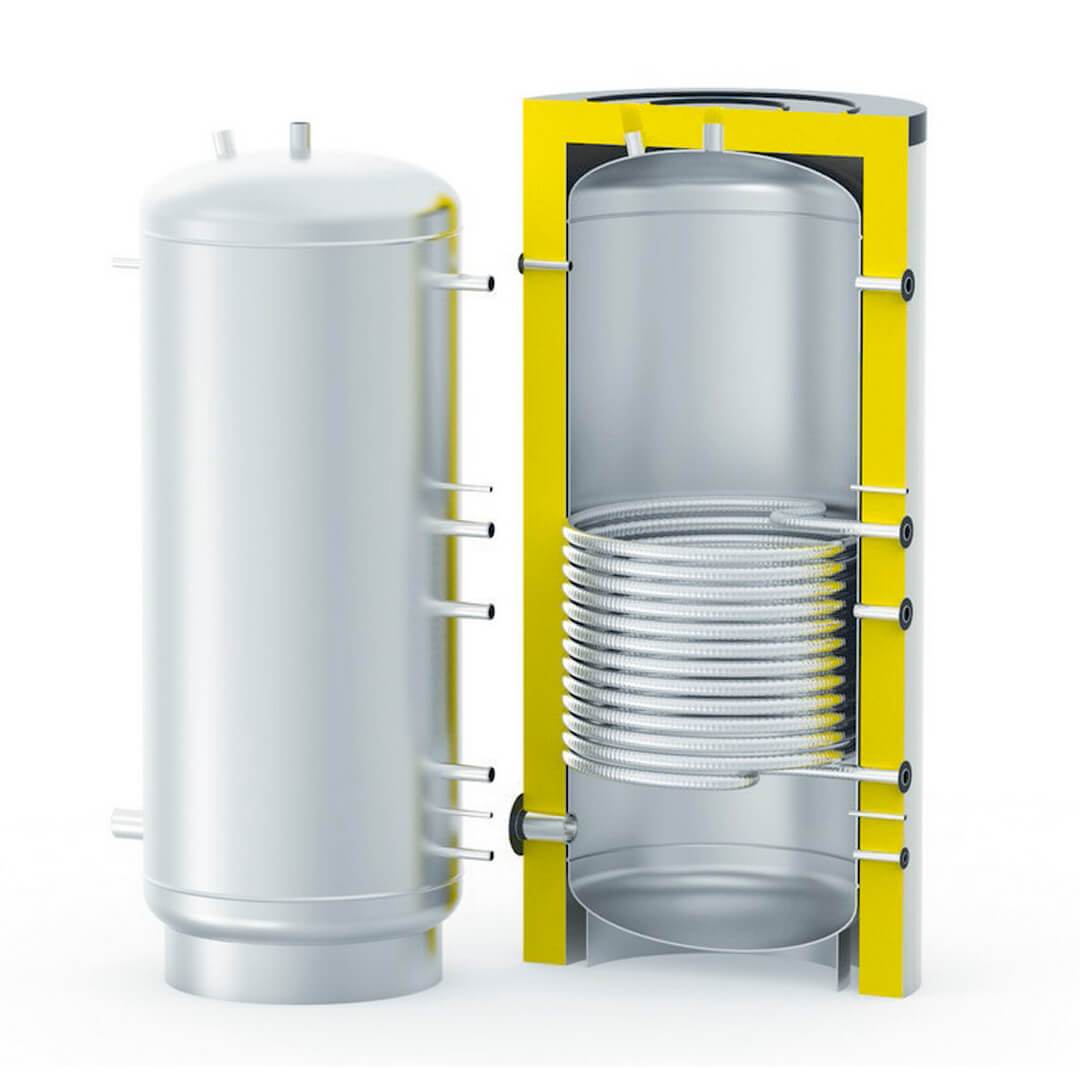

  • All in One Pressurised Buffer Tank and Indirect Water Heater - 100 L Capacity

    Why Our Combined Buffer Tank and Indirect Water Heaters?

    Our Combination of Buffer Tank and Indirect Water heater is a money saving investment for designers and installers looking to use various sources of energy. It's simply a Buffer Tank with two opposite Large Diameter (1½") Inlet/outlets connections, Two Immersed Coils that can be combined in one (with the optional Coils Connection Piece).

    This gives our combined tank the flexibility to be used for various hydronic applications. They are a smart use when combing Air to Water Heat Pump, Thermal Solar Panels (such as Vacuum Tubes Solar Collectors) and conventional Make-up heat producing equipment (such as Boilers, Fire Places, etc...).  They save you the money for buying one individual Tank for each hydronic application.


  • Specifications:

    Inner Tank Materials Food Grade SUS 304-2B 1.2mm thickness
    Outer Tank Cover Material White Color Galvanized Steel 0.5mm thickness
    Heat Preservation Layer 60mm of High Pressure Automatic Polyurethane Foaming Layer, Density of 36 Kg/m³ (2.24 Lb/ft³)
    In Tank Heat Exchanger (Coil) Specifications Stainless Steel SS304, Thickness: 1mm (0.04")
    Immersed Coil Outer Diameter / Thickness 38mm (1½") / 1 mm
    Coil Inlet/Outlet Connection 38mm (1½") Female NPT
    Bottom Coil (Option) 2 m²
    Upper Coil (Option) No Coil
    Water Purification Magnesium Rod Installed
    Backup Heat Standard 1" port for electric backup with mechanical thermostat (Heater not included with the tank)
    Drain Port ¾" Female NPT (Bottom of Tank)
    Safety T/P Port (Exhaust Port) ¾" Female NPT (for T/P Safety Valve)
    Tank Inlet/Outlet Connections 40mm (1½") Female NPT
    Accessories Tank Feet, Screws, Safety T/P Valve
    HSE Limited Warranty  5 Years against manufacturing defects
    Water Tank Size

    Φ500 (B) x1050 (H) mm - A=380mm

    Tank Shipping Size 1100x600x600mm
    Gross Weight 34 kg (74.95 lbs)
    Storage Volume 100 L
    Recommended Max Operrating Temperature / Pressure  160°F / 120 PSI

    Friction Loss:

    Lower Coil:

    Flow (GPM) Pressure Drop (KPA) Pressure Drop (PSI)
    2 1.48 0.21
    4 5.33 0.77
    6 11.28 1.64
    8 19.21 2.79
    10 29.03 4.21
    12 40.67 5.90
    14 54.09 7.85
    16 69.25 10.04
    18 86.11 12.49
    20 104.64 15.18
