FLEXIBLE STAINLESS STEEL SOLAR PIPES, FITTINGS AND TOOLS

Corrugated Stainless Steel (SS) Pipes and fittings and special tools required for cutting and joining SS pipes to fittings.

PRESSURE AND TEMPERATURE RATING:
For Pre-Insulated Pipe Variant, 100% Genuine EPDM insulation pipe, Light, flexible, closed cell, synthetic rubber; free of PVC and non- CFC.Very good ozone resistance, UV-resistant. Work Temperature range from -200℃ to 150℃, Max to 175℃ (including Joints).

JOINABILITY AND EASE OF FABRICATION:
Since Stainless Steel solar pipes are flexible, they are much easier to work with. All the installer has to do is to open the box, uncoil the piping and then start snacking it through the building. Unlike Copper Coils, changing directions with Stainless Pipes does not required any special tools (such as pipe Bender, etc...). For More information on how to manipulate Solar Flexible Stainless Steel pipes, refer to our technical Blog: Step by Step Solar Hose Installation.

FRICTION LOSS:
This product has a great place in systems whose pump flow rates are small if you used the 3/4 inch sized stainless steel product. On the one hand, the 1/2 inch SS Pipe has about four to five time the head loss of smooth copper pipe of the same size. On the other hand SS Pipe has less short radius elbows. That's why we don't recommend using the 3/4 Inch pipe size for applications having more than one Vacuum Tube Collector. For more information please refer to our Flexible Solar Pipes Friction Loss Chart.

Solar Stainless Steel Flexible Pipes Fittings And Tools

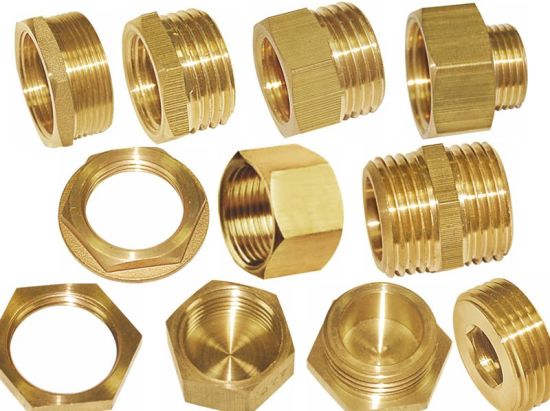

brass fittings

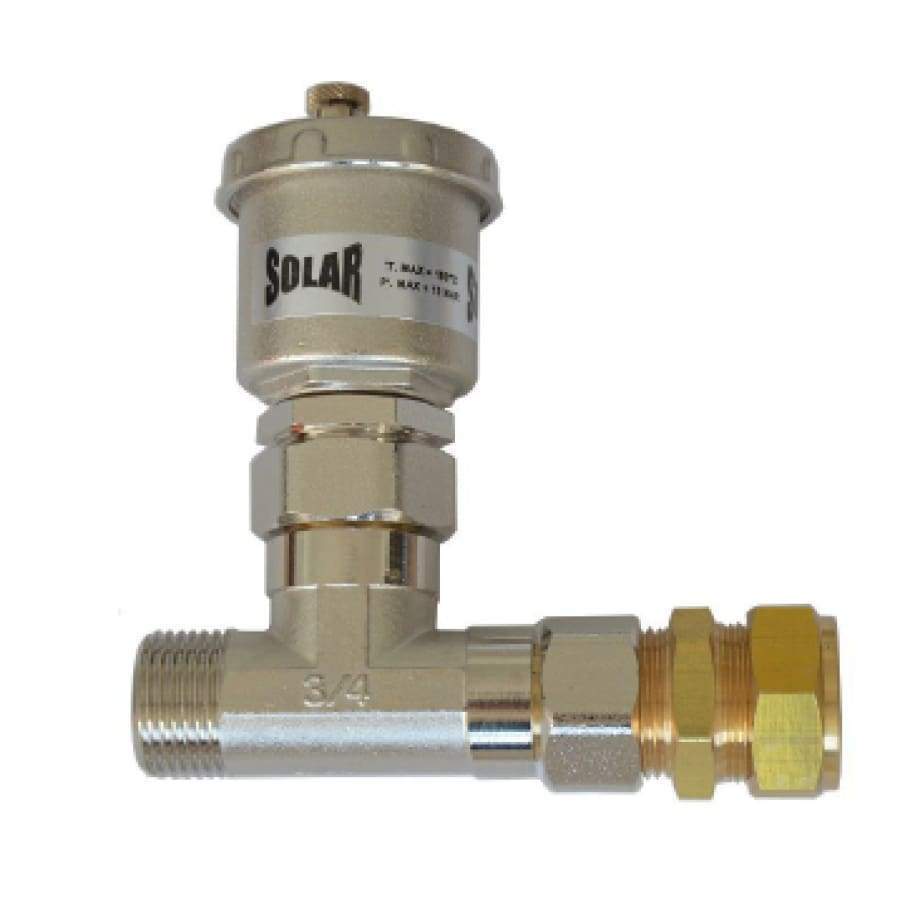

AIR VENT KIT

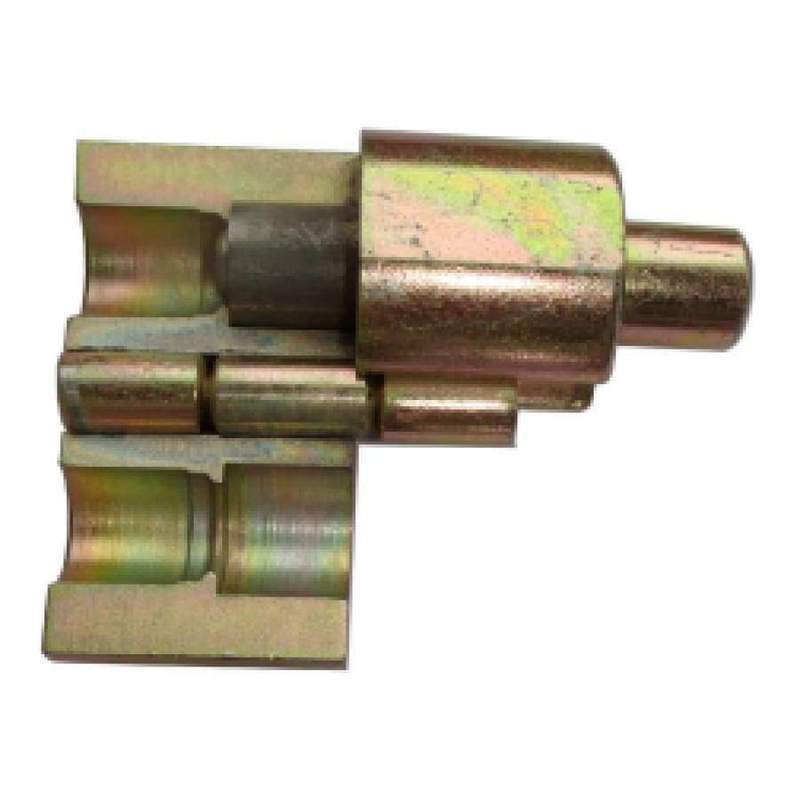

SS PIPE TOOL
