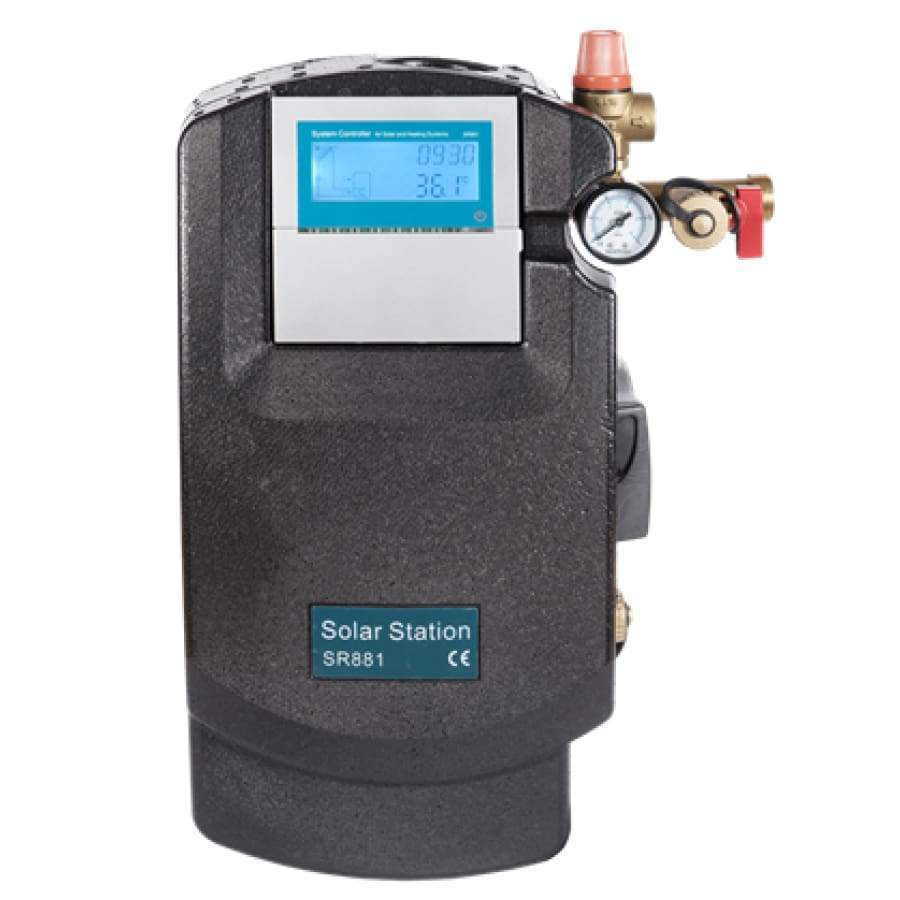

Solar Pumping Station SR881

Solar Pumping Station SR881

$ 790.00 CAD

Notify me when back in stock

Payments:  Credit Cards paypal bank transfer

Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.

  • refund Full refund if you do not receive your ordered items.
  • refund Partial Refund for partially not received or damaged items
  • Description
  • Specifications
  • Technical Documents

  • What is a Solar Pumping Station?

    A solar Pumping station is a module containing Heat transfer fluid circulation pump, solar differential controller, check valve, safety valve, filling valve, Tank temperature sensors and collector temperature sensor.

    kit

    This solar pump station is a pre-installed and leak-tested  for transferring heat from the collector to the storage tank. It contains important fittings and safety devices for the operation of the solar thermal system:

    • Ball valves in supply and return lines in combination with check valves to prevent gravity circulation.
    • Flow meter for displaying the flow rate
    • Manometer for displaying the system pressure
    • Safety valve to prevent inadmissible over pressure
    • Flushing and filling unit (optional) for flushing, filling and emptying the solar thermal system.

     What's in the box?

    • 1* solar pump station with Single Speed Pump Shnihoo Pump GPD20-6S.
    • 1* integrated solar controller
    • 1* collector sensor PT1000
    • 2* storage sensor NTC10K
    • 1* wall mounting bracket
    • 1* accessory bag（include 2 * screw and dowel ;  2 * strain relief）
    • 1* Operating and Maintenance Manual

  • TECHNICAL  DATA

    • Diamension: 400mm*200mm*145mm
    • Installation:  wall  mountingalso  suitable  for  mounting  into  patch  panels
    • Power  supply: 100V-130V  AC50-60Hz.  .
    • Power  consumption:  < 3W
    • Accuracy of temperature measuring: ± 2oC
    • Range of collector temperature measuring: -10 ~200oC
    • Range of tank temperature measuring: 0 ~110oC
    • Suitable power of pump: 2 pumps possible to be connected power of each pump < 200W .
    • Inputs: 3 sensors
    • Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)
    • NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)
    • Outputs:2 relays for circulation pumps or 3-way electromagnetic valve
    • Ambient temperature:-10oC ~ 50oC.
    • Water proof grade: IP40.

    MAIN  FUNCTIONS

    • Timing  heating
    • Temperature  differential  control  1*ΔT
    • Collector  emergency  shutdown
    • Collector  cooling  function
    • Collector  low  temperature  protection
    • Collector  frost  protection
    • Tank  re-cooling  function
    • Celsius  and  Fahrenheit  temperature  switch
    • Maximum  temperature  of  tank(max.number  1)
    • Anti-Legionella  function
    • Temperature  controlled  hot  water  circulation  pump
    • RPM  speed  controlling(1*semiconductor)
    • Thermal  energy  measuring
    • Pump  interval  functions.
    • High  temperature  by-pass  function
    • Manual  Control(  for  2  outputs: P1H1)
    • Password  setting
    • Recovery  to  factory  setting
    • Holiday  function
    • Manual  Heating
    • Temperature  query  function
    • Memory  Protection
    • Screen  protection
    • Trouble  protection
    • Troubleshooting
