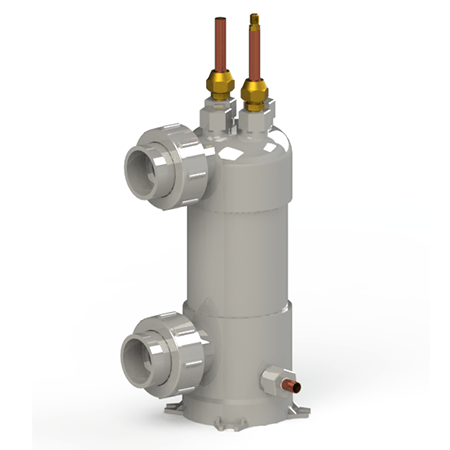

Shell and Tube Refrigerant to Water Titanium Heat Exchanger - 30KW (102MBH)

$ 4,011.00 CAD

Notify me when back in stock

Payments:  Credit Cards paypal bank transfer

Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.

  • refund Full refund if you do not receive your ordered items.
  • refund Partial Refund for partially not received or damaged items
  • Specifications & Dimensions
  • Technical Documents
  • Specifications PVX300 (2-3 Weeks Delivery Delay)

    Nominal Capacity KW (MBH) 30 (102)
    Water Flow m3/hr (US GPM) 14 (61.6)
    Shell Materials PVC
    Tubes Materials Titanium
    Connection Type NPT Threaded
    Water Side Connection Size (Pool Side) 2"
    Refrigerant Side Connection (mm) 12.7/19
    Approval UL, cUL, ISO09001 and ISO14001
    PVC Shell Pressure Rating - bar (PSI) 8 ( 120)
    Refrigerant Side Pressure Rating - bar(PSI) 45 (660)
    Maximum Operating Temperature - ⁰C (⁰F) 100 (212)
    Minimum Operating Temperature - ⁰C (⁰F) -20 (-4)
    H1 (mm) / H2 (mm) / Overall Height (mm) 80/430/650
    Heat Exchanger Tube - Diameter (mm) / Length (m) 19/15
    Packaging Individual Box / Plywood Box



    Dimensions

    Dimensions
