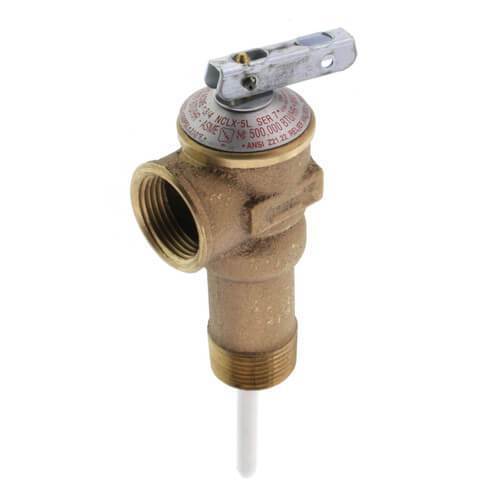

3/4'' NPT Male Water Tank Safety Valve - Temperature/Pressure Relief Valve - Model CASH ACME NCLX-5 (CSA Certified)
Payments:
Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.
Full refund if you do not receive your ordered items. - Partial Refund for partially not received or damaged items
Full refund if you do not receive your ordered items. - Introduction
- Specification Data
- Technical Documents
-
Introduction
Cash Acme NCLX Combination Temperature and Pressure Relief Valves are designed for the protection of water heatersvalve and storage tanks.
Cash Acme NCLX Valves are designed to meet ANSI Z21.22/CSA 4.4 and ASME Boiler Code Section IV in most configurations (see Certifications for details) and are ideal for all domestic water heater applications.
Cash Acme NCLX Valves are completely automatic and reseat after either temperature or pressure relief. They are offered in 1/2" and 3/4" sizes with male inlets and female outlets. The NCLX Valve incorporates an innovative “white coat” thermal element coating; an inert covering that provides effective isolation from mineral deposits (liming) and galvanic corrosion, offering many years of dependable safety protection.
The NCLX-5 model provides the standard length body and thermal element. -
Specification Data
Performance:
- Available Set Pressures :150 psi standard.
- Temperature Relief: 210°F standard.
- Service: Hot Water.
Materials:
- Body: Bronze
- Internal Parts: Brass and stainless steel
- Seat Disc: Silicone
- Pressure Spring: Stainless steel
Certifications:
Cash Acme NCLX Relief Valves are certified to ANSI Z21.22/CSA 4.4 and are capacity certified to ASME Boiler Code Section IV (see Rating Table in Technical Documents Tab).
-
