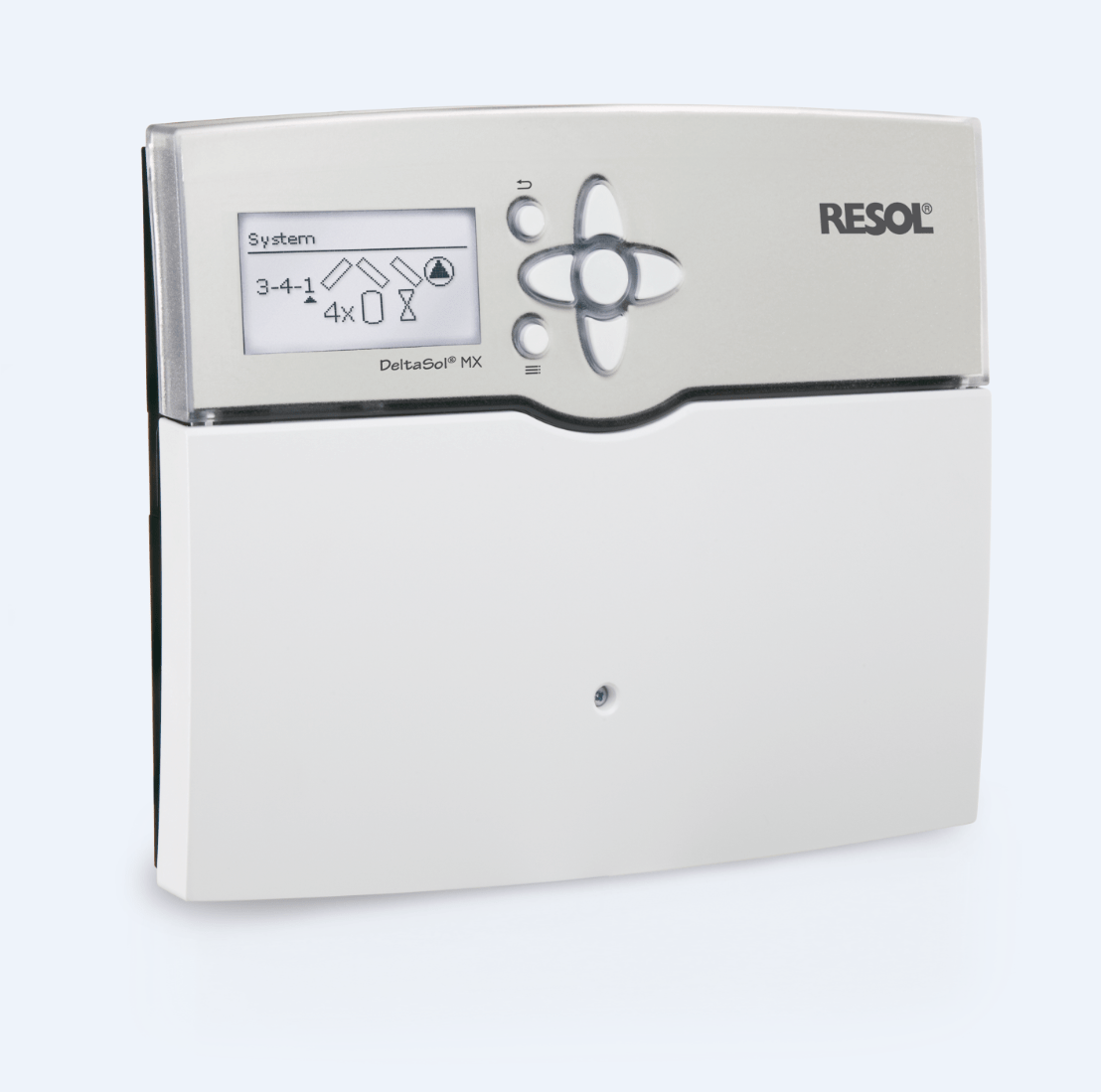

Resol DeltaSol® MX Solar Controller

Resol DeltaSol® MX Solar Controller

$ 1,264.00 CAD

Notify me when back in stock

Payments:  Credit Cards paypal bank transfer

Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.

  • refund Full refund if you do not receive your ordered items.
  • refund Partial Refund for partially not received or damaged items
  • Description
  • Possible Control Configurations & Arrangements
  • Technical Documents

  • Resol DeltaSol® MX Solar Controller (full kit - 115 992 17)

    The RESOL DeltaSol® MX (full kit - 115 992 17) is a system controller of the latest generation and offers almost boundless possibilities in planning and controlling solar thermal systems. It is equipped with 14 relay outputs and 4 PWM outputs for the speed control of energy-saving high-efficiency pumps. Additionally, the controller has three impulse inputs as well as a range of different sensor inputs. Up to 5 EM Extension Modules can be connected via the RESOL VBus®.
    The integrated SD memory card slot enables an easy datalogging to an SD memory card and a quick, effortless transfer of logged data to a PC. Additionally, firmware updates can be run and controller settings can be saved on and transferred from an SD card. The large full graphic display allows the direct display of balance and progression diagrams. Pre-defined functions allow easier setup of the system; functional additions such as a drainback function extend the range of applications.

    Technical Features:

      • 14 relay outputs, 12 inputs for PT1000, PT500 or KTY temperature sensors.
      • Inputs for Grundfos Direct Sensors (TM) to measure flow, pressure and temperature.
      • Advanced Energy Measurement with data logging via internal SD card.
      • Compatible with Flowrotor flow meter and CS10 radiation monitor.
      • Equipped with Resol Vbus® for data communication via the internet.
      • Certified for the North American market (cLCus)
    Resol DeltaSol® MX (full kit) includes 6 x PT1000 standard length sensors (2 collector sensors and 4 tank sensors).

  • Possible Control Configurations & Arrangements:

    Resol Solar Controller DeltaSol® MX configuration


  • Data SheetManual
