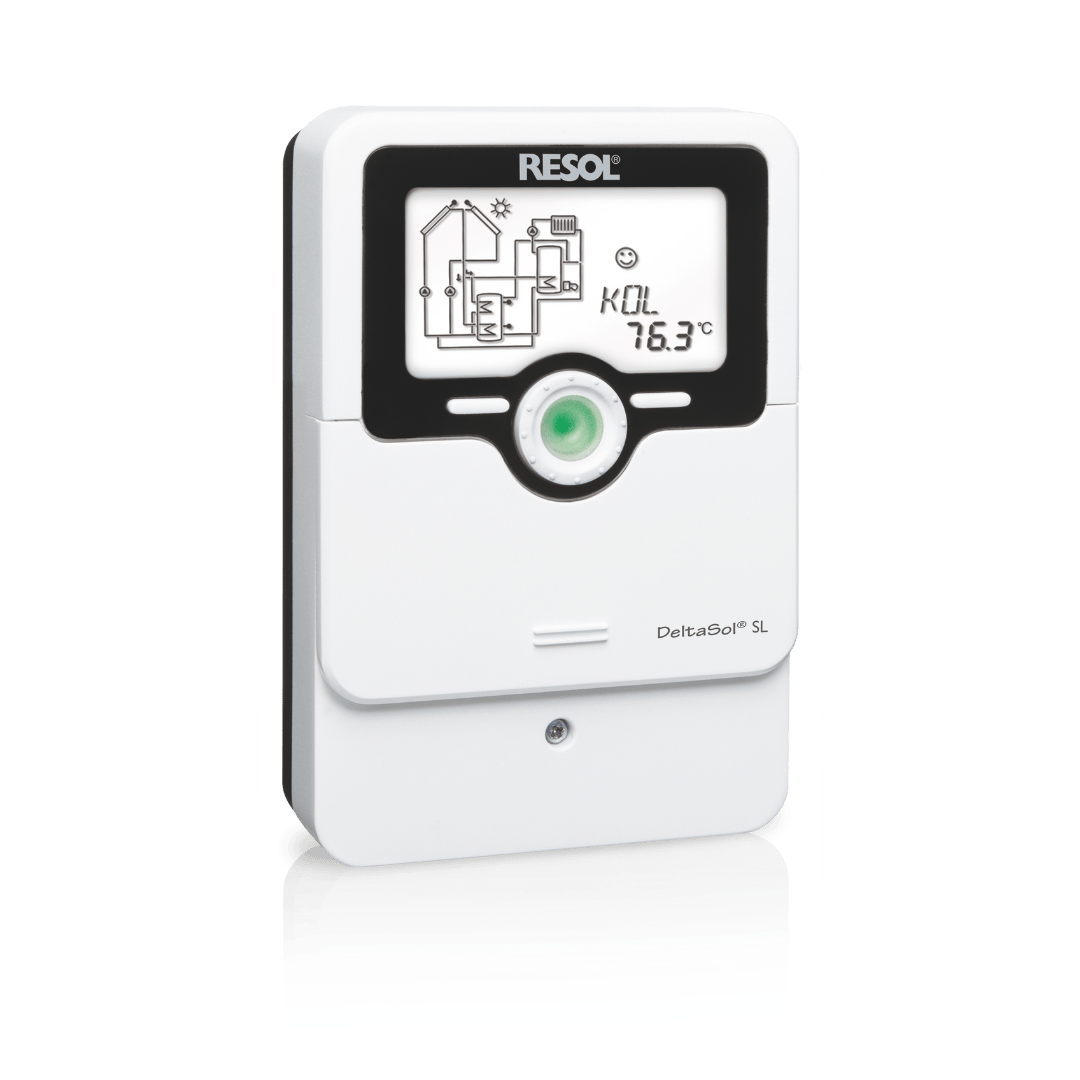

Solar controller DeltaSol® SL Solar Controller (full kit part number: 115 003 43)

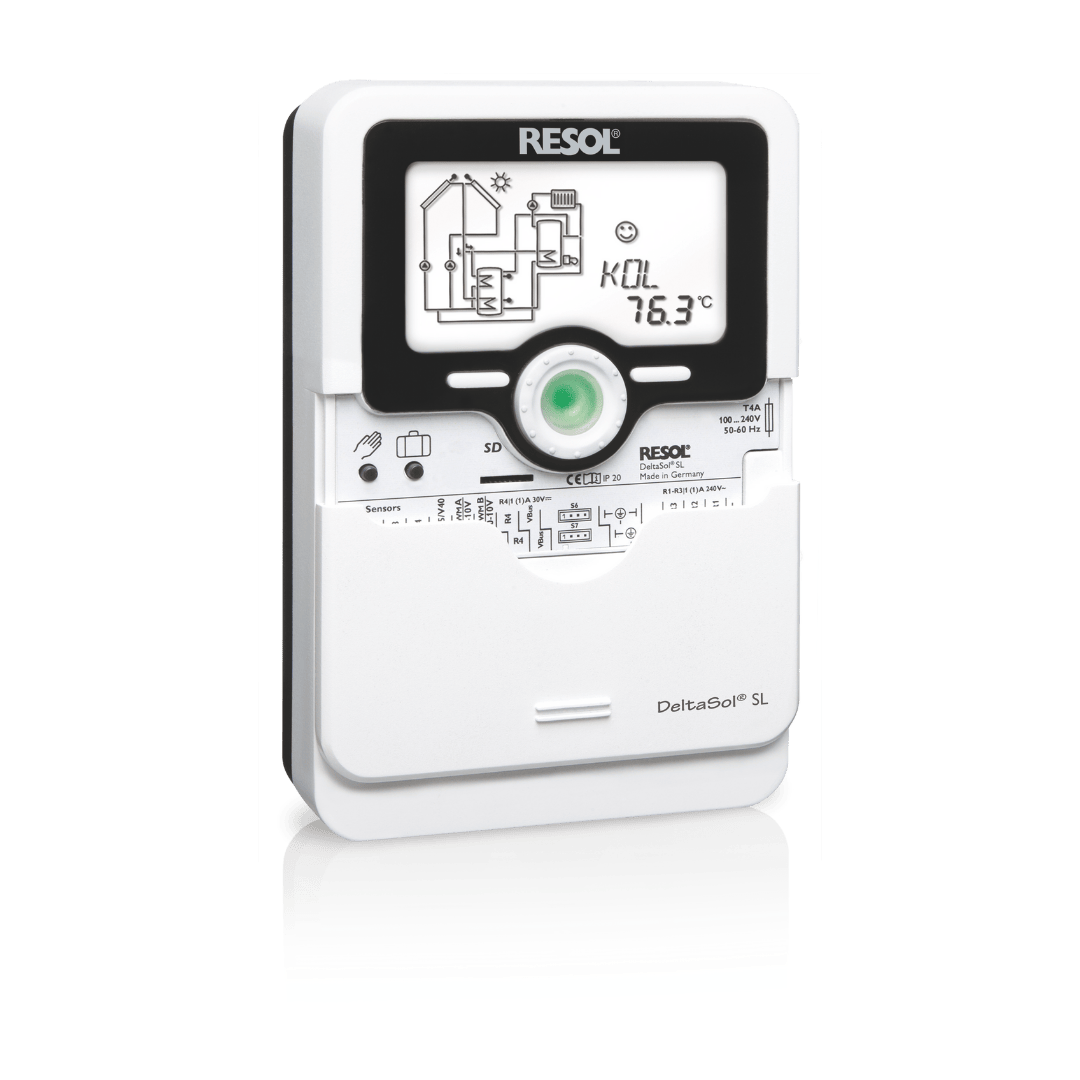

With its versatile software, the DeltaSol® SL can control even complex systems easily and reliably. 27 pre-configured system layouts with up to 3 hydraulic variants each facilitate the commissioning and enable the adaptation to the individual system requirements. The operation via 2 main buttons and 1 adjustment dial, the Lightwheel®, still follows the well-known operating concept. The multicoloured LED, integrated in the Lightwheel®, offers many possibilites to signal different system states. The microSD card slot and the 2 microbuttons for quick access to the manual mode and the holiday function are located underneath the slidable housing cover, the SLider.
DeltaSol® SL series Characteristics:
- 4 relay outputs (incl. 1 potential-free extra-low voltage relay)
- 4 inputs for PT1000, PT500 or KTY temperature sensors
- Input for 1 analogue Grundfos Direct Sensor™
- 1 V40 impulse input (also usable as a Pt1000, Pt500 or KTY temperature sensor input)
- 2 PWM outputs for the speed control of high-efficiency pumps
- 27 basic system layouts with up to 3 hydraulic variants each to choose from
- Automatic function control according to VDI 2169
- Data logging, easy transfer of controller adjustments prepared and firmware updates via SD card
- Heat pump demand (optional)
-
