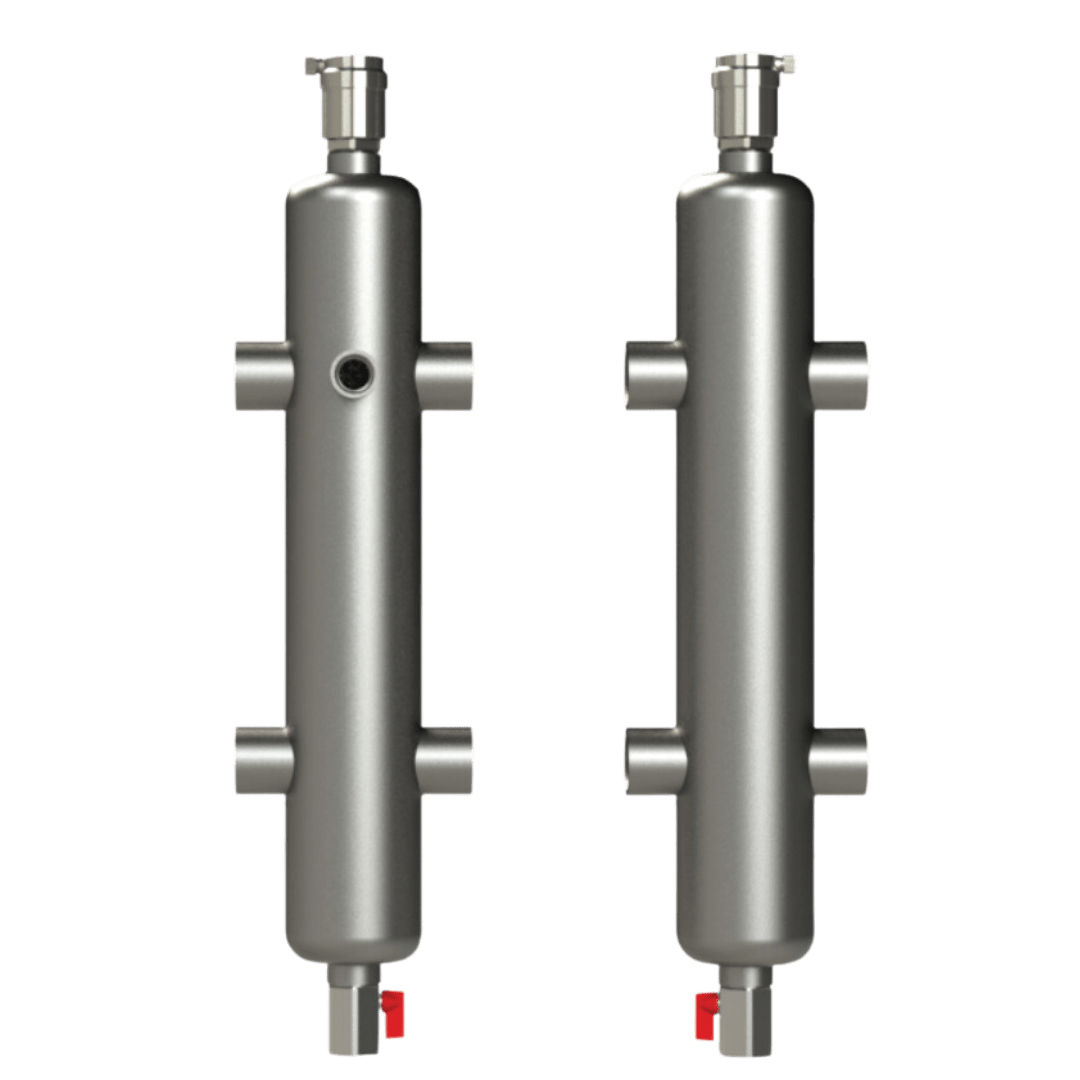

Stainless Steel Hydraulic Separator - 1" BSPT threaded
Payments:
Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.
Full refund if you do not receive your ordered items. - Partial Refund for partially not received or damaged items
Full refund if you do not receive your ordered items. - Description
- Technical Documents
-
What is a Hydraulic Separator?
A Hydraulic separator, or sometimes called "Decoupler" or "Common Pipe" is simply a large diameter pipe with 2 inlets and 2 outlets on each side of the pipe. Friction loss between inlet and outlet on each side of the separator is close to zero.
Hydraulic separator is equiped with Automatic Air Vent, Drain Valve, Thermal Well and a set of mounting accessories.
What is Hydraulic Separator Used for?
Most Heat Producing Equipment such as Boilers, Air to Water Heat Pumps, Chillers, etc... are designed to operate at a constant flow (primary Hydraulic Circuit) while heat consuming equipment water supply network (secondary Hydraulic Circuit) serving Fan Coil Units, Air Handling Units, Infloor Heating Loops, etc.. are variable flow networks even when individual components on that network are constant flow. Since the pressure loss through the Hydraulic Separator is almost zero, Pressure/Flow variation of the secondary hydraulic circuit does not affect the pressure/flow of the primary hydraulic circuit. Hydraulic separators are used in applications where primary hydraulic circuits are required to operate at constant flow or have a minimum flow to respect.
Specifications:
Dimension mm inch A 457 18 B1 210 8 B2 210 8 C 150 6 C 1/2" FEMALE BSPT E 1" Male BSPT F 1" Male BSPT G 76 3
