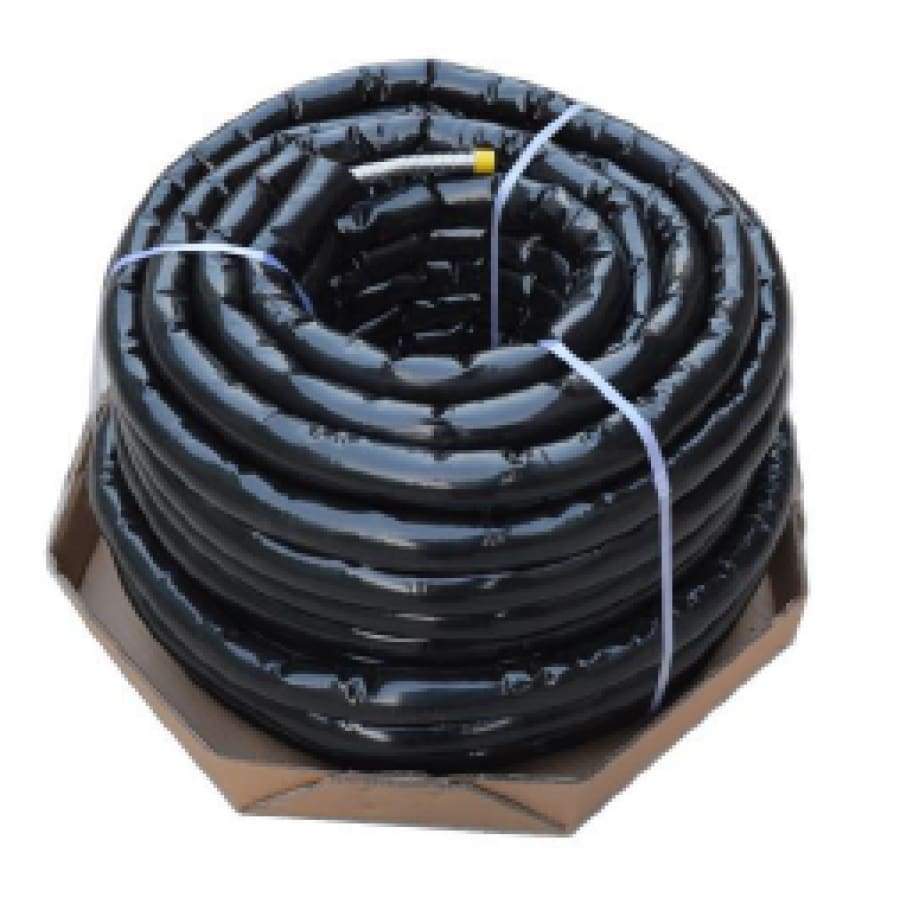

Flexible Corrugated Stainless Steel EPDM Pre Insulated Single Solar Hose with Seamless Jacketing & Sensor Cable

$ 258.77 CAD
Size
Roll Length
Insulation Wall Thickness

Notify me when back in stock

Payments:  Credit Cards paypal bank transfer

Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.

  • refund Full refund if you do not receive your ordered items.
  • refund Partial Refund for partially not received or damaged items

What is Single Flexible Stainless Solar Hose with Cable is and What does it Include?

A Flexible Solar Stainless Steel Hose is the hydronic link between Outdoor Solar Collector, Solar Storage Tank with immersed Coil and Pumping Station (as shown in the picture below). it's represented by the bold hatched lines in the schematic below. Delivery includes High quality Single flexible stainless steel pipe with Solar Collector temperature sensor's cable (Sensor is Excluded. The cable is only included), high temperature EPDM insulation pipe, up to 175C, strong seamless jacketing protection (Non PVC including) good UV resistance and anti-aging performance, excellent performance for both indoor and outdoor installations.

Pressure and Temperature Rating:

100% Genuine EPDM insulation pipe. Light, flexible, closed cell, synthetic rubber; free of PVC and non- CFC.Very good ozone resistance, UV-resistant. Work Temperature range from -200℃ to 150℃, Max to 175℃ (including Joints).

DN ID mm OD mm Bending Radius mm  Maximum Applicable Pressure Kgf/cm2 Burst Pressure Kgf/cm2
DN12 12 16 30 17.5 200
DN16 16 20 50 15 200
DN20 20 25 60 12 200
Dn25 26 32 80 10 120

Joinability and Ease of Fabrication:

Since Stainless Steel solar pipes are flexible, they are much easier to work with. All the installer has to do is to open the box, uncoil the piping and then start snacking it through the building.

GD-FLEX pre insulated solar hose only require 1 step to finish the Solar Water Heater Pipe Installation. The system is light weight and space saving, which is easy to handle, even in confined spaces.

Unlike Copper Coils, changing directions with Stainless Pipes does not required any Cutting, welding, brazing or special tools (such as pipe Bender, etc...). For More information on how to manipulate Solar Flexible Stainless Steel pipes, refer to our technical Blog: Step by Step Solar Hose Installation.

Friction Loss:

This product has a great place in systems whose pump flow rates are small if you used the 3/4 inch sized stainless steel product. On the one hand, the 1/2 inch SS Pipe has about four to five time the head loss of smooth copper pipe of the same size. On the other hand SS Pipe has less short radius elbows. That's why we don't recommend using the 1/2 Inch pipe size for applications having more than one Vacuum Tube Collector. For more information please refer to our Flexible Solar Pipes Friction Loss Chart.

Type Part No. Flex CSST SIZE(OD*ID) Pipe Connection Fittings Size HT insulation pipe (Wall thick)
1/2" HSSSIS1213 16mm*12mm 1/2" 13mm
1/2" HSSSIS1220 16mm*12mm 1/2" 20mm
3/4" HSSSIS2013 20mm*16mm 3/4" 13mm
3/4" HSSSIS2020 20mm*16mm 3/4" 20mm
1" HSSSIS2513 25mm*20mm 1" 13mm
1" HSSSIS2520 25mm*20mm 1" 20mm
1¼" HSSSIS3213 32mm*26mm 1¼" 13mm
1¼" HSSSIS3220 32mm*26mm 1¼" 20mm

An example of a Solar Water Heater Installation with Stainless Steel Solar Hose

Solar Hose Application
