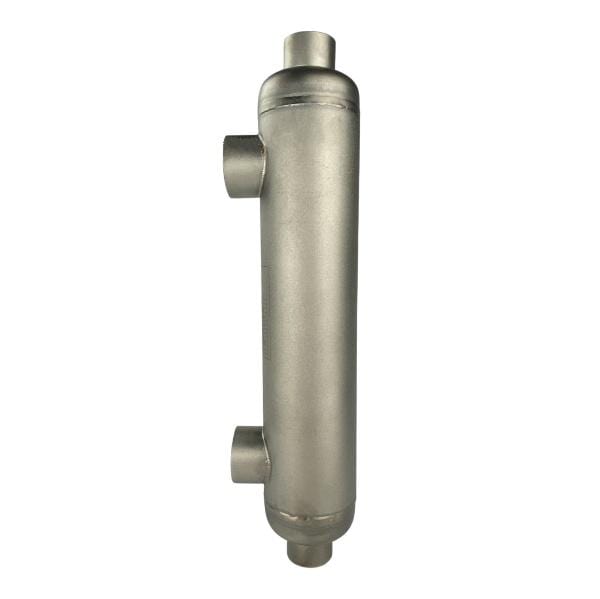

TITANIUM POOL HEAT EXCHANGER SP55T-S (15 KW or 55 MBH)

Titanium Pool Heat Exchanger SP55T-S (16 KW or 55 MBH)

$ 604.60 CAD

Notify me when back in stock

Payments:  Credit Cards paypal bank transfer

Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.

  • refund Full refund if you do not receive your ordered items.
  • refund Partial Refund for partially not received or damaged items
  • Description
  • Technical Documents

  • Introduction - 55 MBH Heat Exchanger

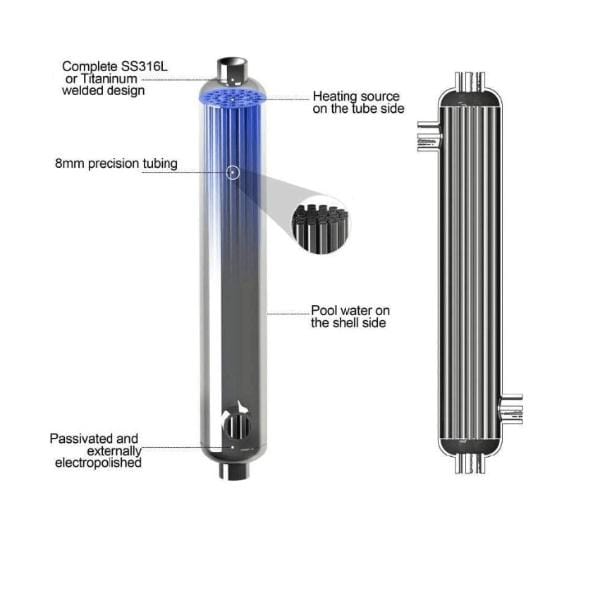

    Our heat exchanger fully constructed of Titanium Shell and Tubes making Pool & Spa Heat Exchanger a very reliable and effective way transfer heat indirectly between any boiler and pool or spa circuit, besides other application. (Nominal Heating Capacities are based on 60°C (108°F) temperature difference between heat source supply temperature and Pool or SPA return Temperature.).Schematics

    Dimensions

    dimensions


     Model Number A (mm) B (mm) C (mm) D (inches) - Female NPT Threaded E (inches) - Female NPT Threaded
    SP55T-S (15KW or 55MBH) 260 60 360 3/4 1
    SP85T-S (25KW or 85MBH) 420 60 520 3/4 1
    SP155T-S (45KW or 155MBH) 350 76 450 1 1 1/2
    SP210T-S (60 KW or 210MBH) 470 76 570 1 1/2 1 1/2
    SP300T-S (88KW or 300MBH) 689 76 780 1 1/2 2
    SP600T-S (175KW or 600MBH) 730 89 830 1 1/2 2
    SP1200T-S (352KW or 1200MBH) 760 114 900 2 2 1/2



  • O&M ManualSpecifications
