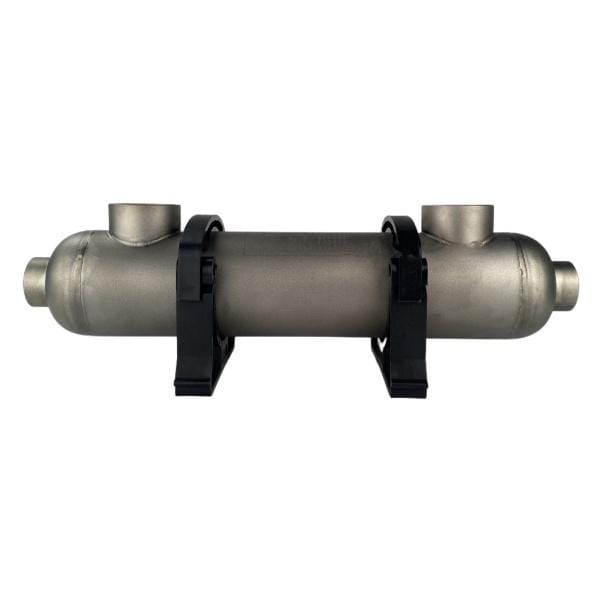

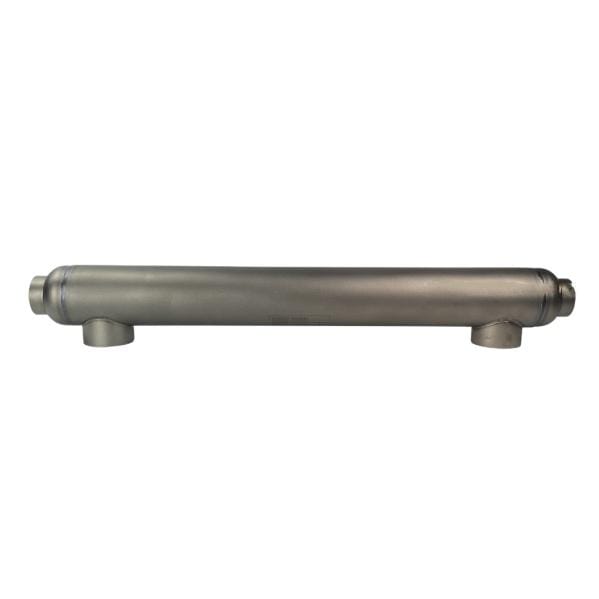

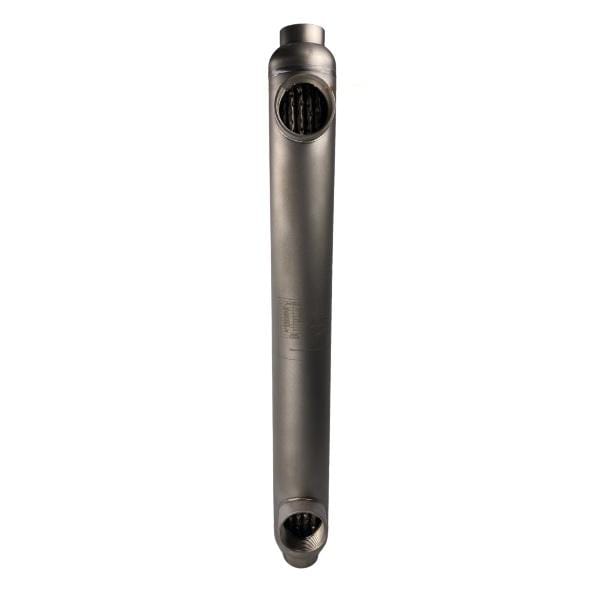

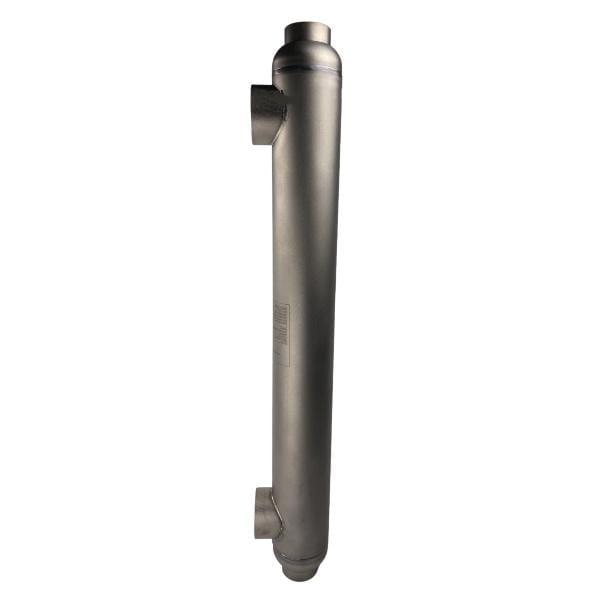

Titanium Pool Heat Exchanger SP300T-S (88 KW or 300 MBH)
$ 1,670.00 CAD
Payments:
Return Policy: We accept return within 30 days of receipt of your orders. Restocking fee applies on some returned Products. Returned Items shall have intact labels, packages and shall not have been used. for more info.
Full refund if you do not receive your ordered items. - Partial Refund for partially not received or damaged items
Full refund if you do not receive your ordered items. - Description
- Technical Documents
-
Introduction - 300 MBH Heat Exchanger

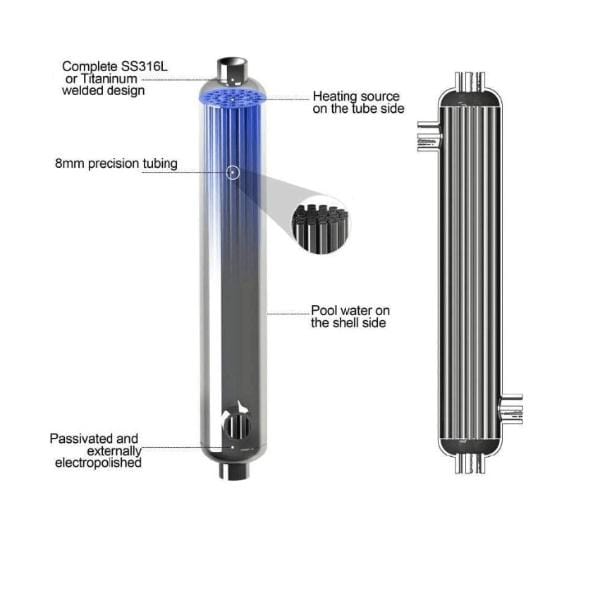

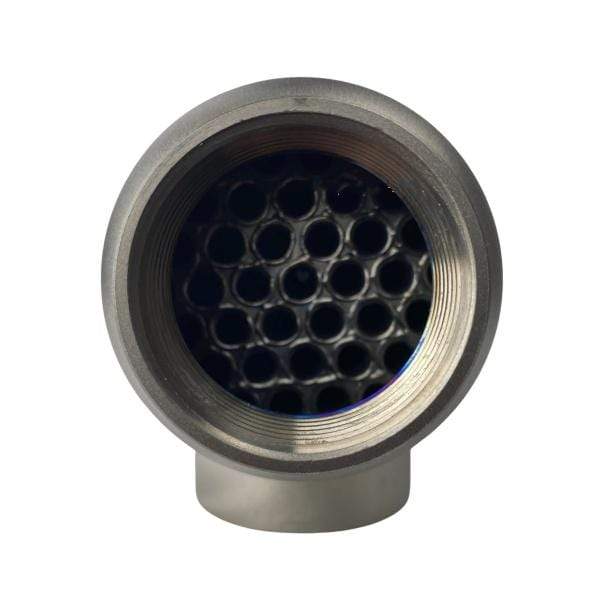

Our heat exchanger fully constructed of Titanium Shell and Tubes making Pool & Spa Heat Exchanger a very reliable and effective way transfer heat indirectly between any boiler and pool or spa circuit, besides other application. (Nominal Heating Capacities are based on 60°C (108°F) temperature difference between heat source supply temperature and Pool or SPA return Temperature.).
Dimensions
Model Number A (mm) B (mm) C (mm) D (inches) - Female NPT Threaded E (inches) - Female NPT Threaded SP55T-S (15KW or 55MBH) 260 60 360 3/4 1 SP85T-S (25KW or 85MBH) 420 60 520 3/4 1 SP155T-S (45KW or 155MBH) 350 76 450 1 1 1/2 SP210T-S (60 KW or 210MBH) 470 76 570 1 1/2 1 1/2 SP300T-S (88KW or 300MBH) 689 76 780 1 1/2 2 SP600T-S (175KW or 600MBH) 730 89 830 1 1/2 2 SP1200T-S (352KW or 1200MBH) 760 114 900 2 2 1/2 -
