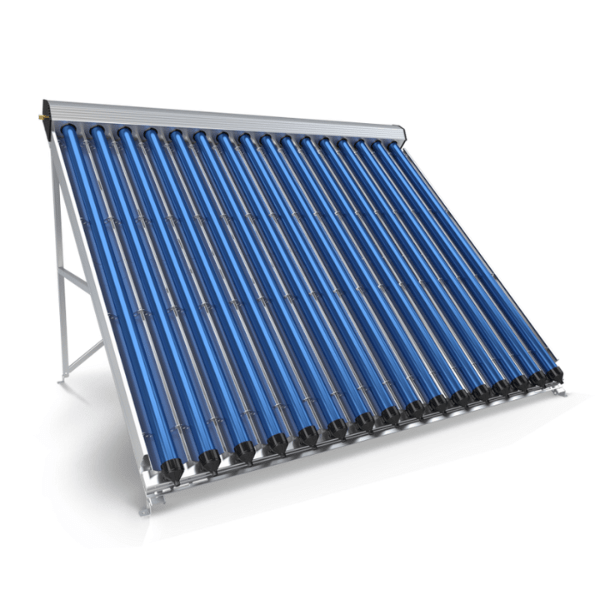

Vacuum Tube Solar Collector Kit, SRCC Certified, VT58 SERIES - Complete with Manifold, Frame, Tubes and 30⁰ Frame Kit

$ 715.00 CAD
Size

Notify me when back in stock

  • Specifications
  • External Dimensions
  • Technical Documents
  • HYDROSOL - VT58 Products Specifications:

    Why Vacuum Tubes for Water Heating?

    Vacuum Tube Solar Collectors (also called Evacuated Tube Solar Collectors) are very useful in northern climates for solar heating of water mainly for space heating and domestic hot water heating. They are among the best performers in Canadian weather and in the northern part of the US.

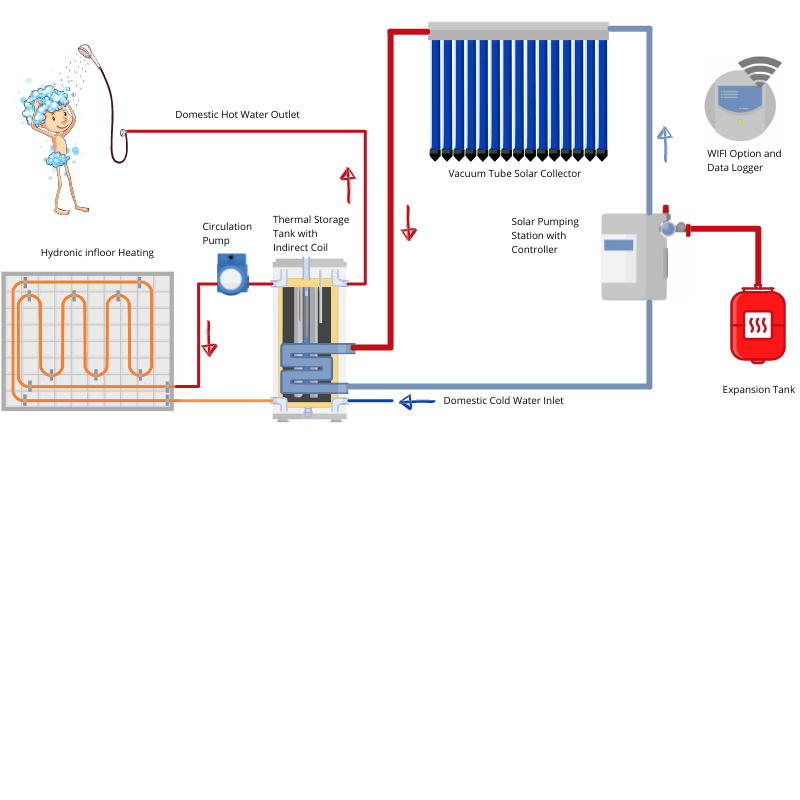

    Vacuum Tube Collectors are the central part of any Solar Water Heating system.They convert solar energy into thermal heat via the vacuum tubes (for more details please go through our blog: How do Vacuum Tubes Collectors works?)

    How much money do you save by producing thermal heat by Vacuum Tube Solar Collectors?

    Harvested solar energy from the sun is free, but converting that energy into useful and economical use is the most expensive part. Proper Planning and Design of any solar installation is the key for a successful solar project: Lowest possible cost, highest possible saving and fastest return on investment.

    Simulating Solar energy based on geography and demographic isn't a simple task. Our Technical Team has crafted a blog to make easier to estimate saving in most major Canadian cities: How much energy can you solar water heater generate?

    A much easier way to size and select your solar water heating system is to contact our technical team or simply filling this online FORM.

    What's included when purchasing this item?

    • Vacuum Tube Pipes.
    • Heat Transfer Fluid Collector.
    • 45 degree Flat Roof Mounting Aluminium Base.
    • All Assembling accessories such aluminium frame & pipe holder.
    Specifications

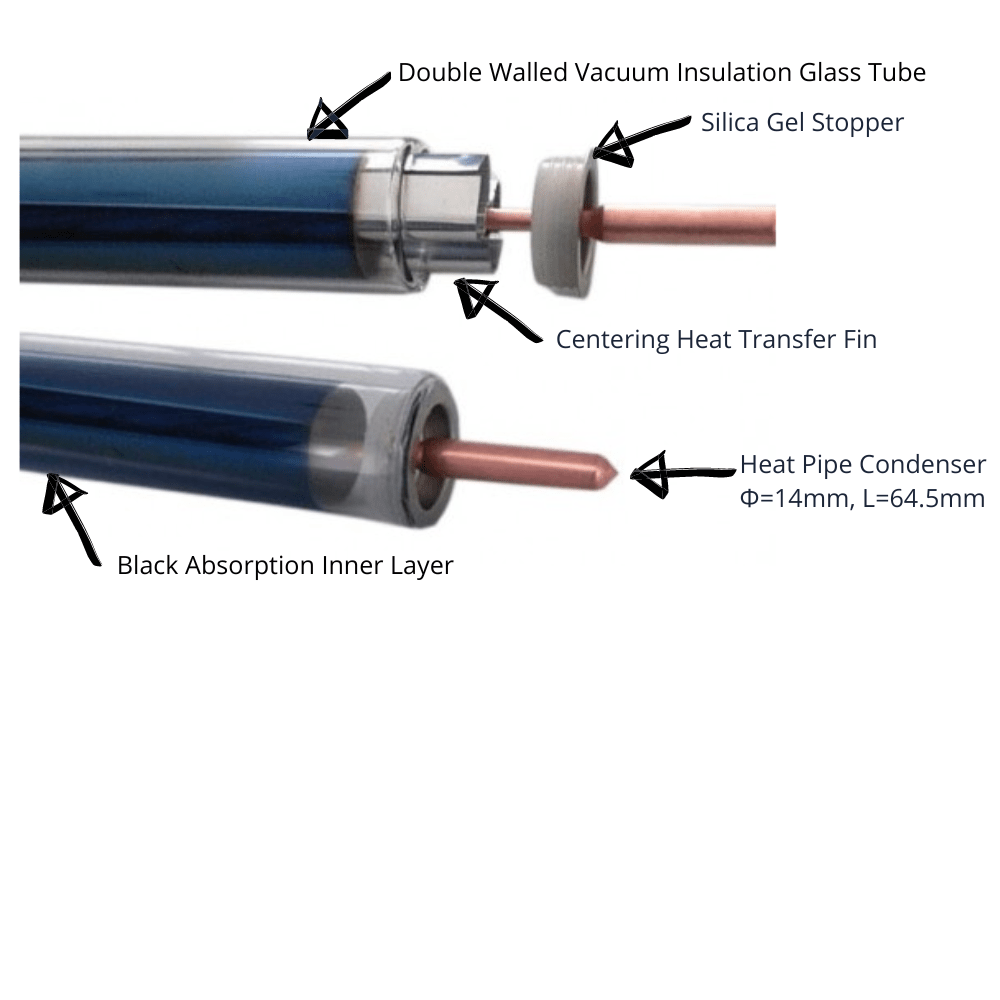

    Heat Pipes and Heat Transfer fins:

    Heat Pipe Details

    Length (mm) 1800
    Condenser Size 14 x 64.5 mm
    Thickness of Heat Pipe (mm) 0.65
    Material Oxygen Free copper (Tu1) Cu+Ag> 99.99% (O2 <16ppm)
    Copper Pipe Dimension 14mm OD x 0.75mm Thick
    Heat Transfer Fluid Glycol, Water or a Mix of Both
    Maximum Working Temperature (°C) 300
    Startup Temperature (°C) < 30
    Vacuum (Pa) <5x10
    Tilt Angle 20-70°
    Horizontal Installation Angle 0 ± 5°
    Heat Transfer Fins 0.2 mm Thick Hot Dipped Aluminum
    Minimum Operating Temperature -40°C



    Frame ( for both flat and slope roof ):

    Material  Aluminium Alloy with powder painting  (Grey color or Black color)
    Thickness of frame (mm) 2.0
    Type rooftop type & flat ground type



    Manifold:

    Material Aluminum Alloy with thickness of 1.5 mm
    Angle from 20 degree to 50 degree according to the latitude of the country
    Insulation Material Polyurethane(PU) with thickness of 45 mm; density=93%
    Size of inlet and outlet  20 mm (inside) and 22 mm (outside);
    Copper Pipe Diameter  35 mm or 38mm
    Copper Pipe Thickness 1 mm



    Connection:

    Material Aluminum Alloy with thickness of 5.0 mm



  • External Dimensions

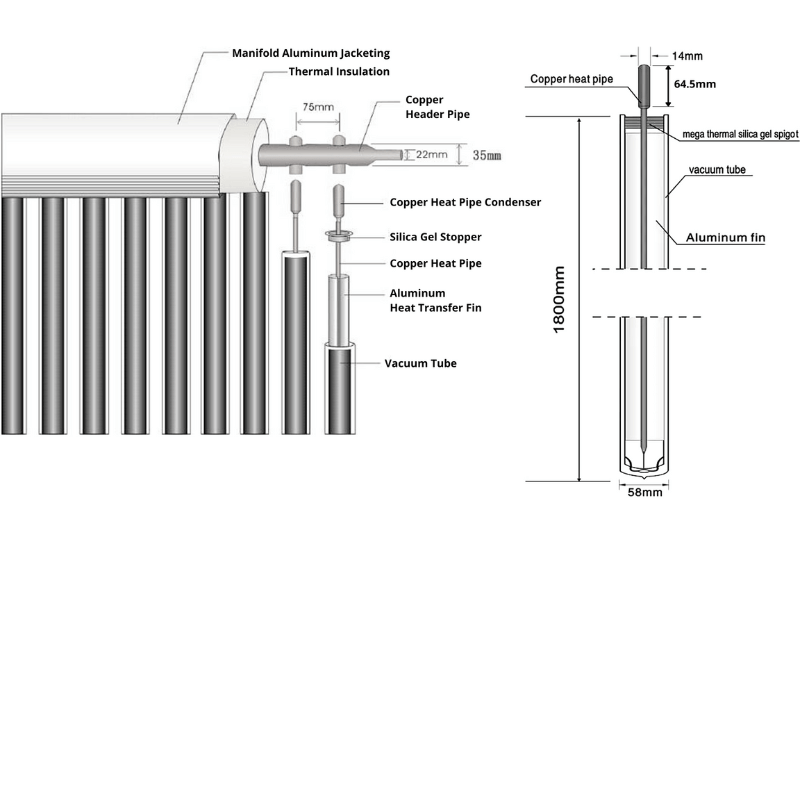

    Vacuum Tubes Dimensions

    N.B: The Back Leg base for flat roof mounting is included with the collector

    Weights:

    15 Tubes Panel  44 Kg (96.8 Lb)
    20 Tubes Panel 71.4 Kg (157.08 Lb)
    25 Tubes Panel 79 Kg (173.8 Lb)
    30 Tubes Panel 85.8 Kg (188.76 Lb)
