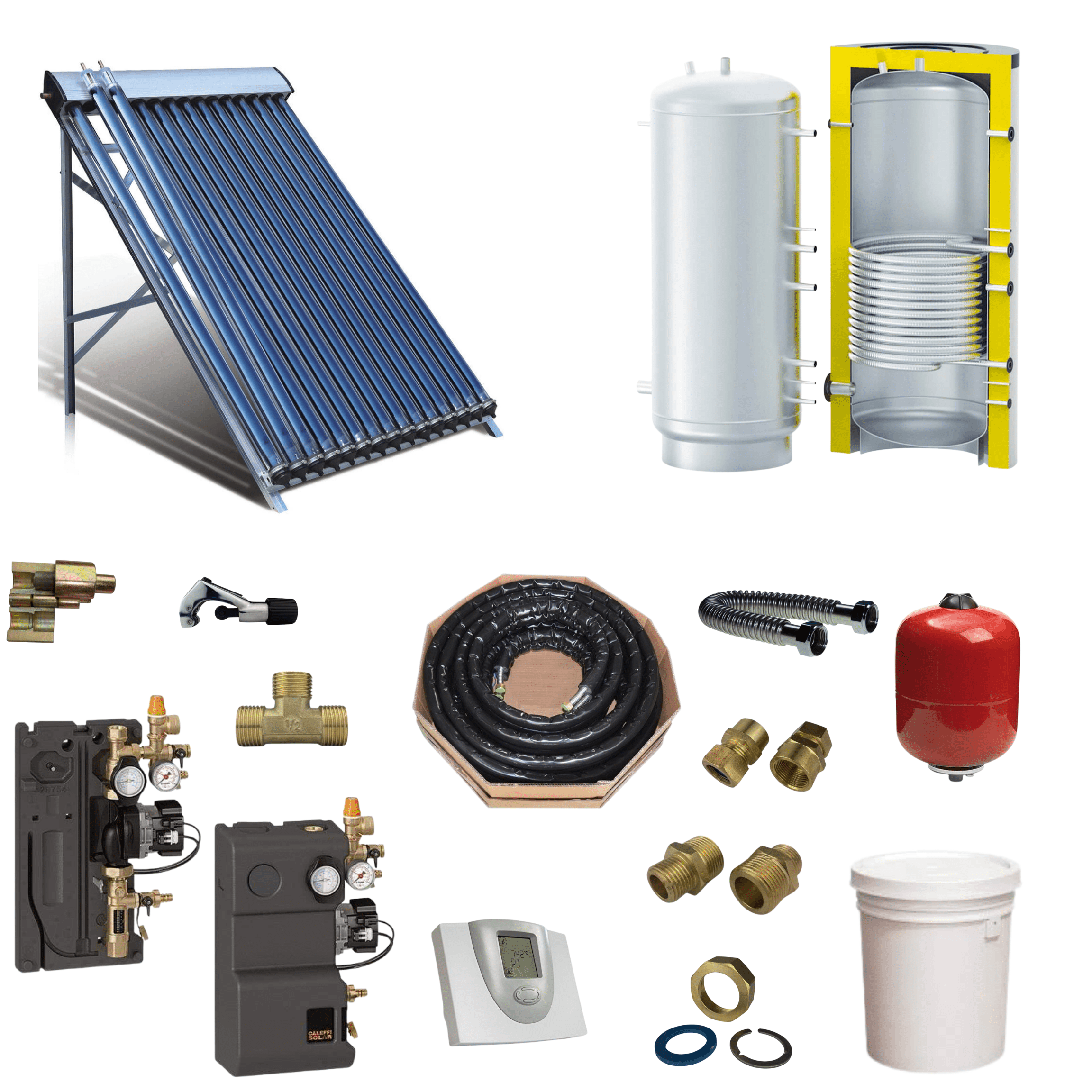

15T_1C_100L_PST_SSA Closed Loop Solar Water heater Kit with 1x15 Tubes Collector, 100L Storage Tank and selected options
- Bill of Quantities
- Technical Documents
What is this kit for? and what does it include?
Whether you're a Solar Water Heater Installer, a DIY addict or simply a regular home owner who's looking for independence from utility bills, this kit is all what you need for a free supply of hot water whether for domestic hot water heating, space heating, pool heating or all together.
A solar Pumping station is included in this kit which is a module containing Heat transfer fluid circulation pump, solar differential controller, check valve, safety valve, filling valve, Tank temperature sensors and collector temperature sensor:
- 1* solar pump station with Pump
- 1* integrated solar controller
- 1* collector sensor PT1000
- 2* storage sensor NTC10K
- 1* wall mounting bracket
- 1* accessory bag (includes 2 * screw and dowel ; 2 * strain relief）
- 1* Operating and Maintenance Manual
This kit includes Flexible Stainless Steel Pipes: High quality flexible stainless Dual Twin (Supply & Return) steel pipe with Solar Collector temperature sensor's cable (Sensor is Excluded. The cable is only included), high temperature EPDM insulation pipe, up to 175C, strong seamless jacketing protection (Non PVC including) good UV resistance and anti-aging performance, excellent performance for both indoor and outdoor installations.
Solar Water Storage Tank is also include in this kit. Storage tank is primarily used for heat storage. During the sunny days, Heating Fluid (Usually Propylene Glycol) will heat stored water in the tank via the immersed coil, thus keeping the energy to be consumed at night when the sun is gone.
How does it work?
Pumping Station's closed loop circulating Pump is turned on by the electronic controller when the difference between outdoor solar collector's Temperature (as measured by the collector's temperature sensor) and Storage Tank Temperature (as measured by tank's temperature sensor) is above a certain set point value (Usually in the range of 10 to 20 Fahrenheit).
Circulating fluid inside the pressurized closed loop will collect heat harvested by the vacuum tube solar collector and exchange it with tank stored water via the immersed tank's coil. Circulating pump is turned off by the same Pumping Station's electronic controller when the same temperature difference (between collector and tank) falls below the preset setpoint.
Potential Savings by buying and installing this Kit?
Energy savings from a solar water heater depends on the location where the Solar Collectors are installed as well as the collectors' tilt angle and orientation toward the sun (plus many other technical and demographic parameters). Please write down the Possible Solar Panel Tilt Angle and Solar Azimuth (based on your roof configuration) locate your nearest Canadian City in our Solar Collectors Annual Heat Generation Sheet. The Corresponding Value is the Annual KWh each panel in your Kit will generate. Multiply this value by the utility rate applicable in your province to get your annual $$ saving.
Pressurized closed loop solar water heater, Bill of Quantities:
- One 15 Tubes solar collector (SRCC certified HYDROSOL VT5815).
- 100L Storage Tank (with lower coil only and no upper coil)
- Pumping Station SR881.
- Stainless Steel Flexible pre-insulated pipes.
- Fittings and other accessories as detailed below.
22MM X 1/2" VACUUM TUBE COLLECTOR INLET'S CONNECTION KIT WITH AUTOMATIC AIR VENT 1 Set FEMALE 3/4" NPT TO 3/4" MALE BSPT CONNECTOR WITH BRASS NUT, HT WASHER,SS CIR-CLIP - (FOR TANK LOWER COIL CONNECTION TO SS PIPE) 1
Pc. Brass Nut, Washer and Cir-Clip 1/2'' 20
Pc. 3/4x 1/2'' BSPT Nipple 4 Pc. HSSCO50 - 22MM X 1/2" VACUUM TUBE MANIFOLD OUTLET CONNECTION KIT 1 Set
3/4" BSPT Female Threaded Socket 4 Pc. Pumping Station Threaded Connector 3/4x1/2" 2 Pc. TOOL FOR FLATTENING CORRUGATED 1/2" STAINLESS STEEL FLEXIBLE PIPE 1 Pc. Stainless Steel Pipe Cutter 1 Pc. Expansion Tank 12 L 1 Pc.
Schematic Diagram & Installation Instructions
